Quartz Broadcast System

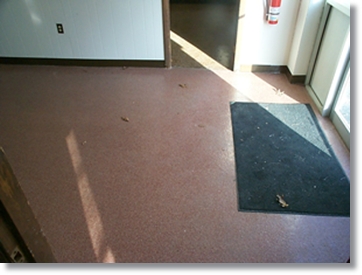

I. INTRODUCTION
A decorative durable system that provides excellent resistance to
wear, staining and chemicals. The blending of coarse and fine quartz aggregate provides a
distinctive appearance suitable for a vast variety of applications. This decorative,
durable seamless system can be non-skid, or smooth texture. It can be applied to most
sound substrate including concrete, plywood, steel decks, ceramic and quarry tile.
II. DESCRIPTION
NI-Dura Quartz Broadcast System shall be a combination of fluid
applied laminates and aggregate forming the seamless flooring system. The membrane system
will be comprised of:
- A. Adhere 101: A two component thermoset, water
soluble, solvent free, odor free, waterproofing, epoxy resin formulation.
- B. NI-21: A two component 100% bisphenol A-type epoxy resin combined wdith a
cycloaliphatic polyamine modified curing agent as binder and top coats. The 100% epoxy
finish coats shall exhibit good amber-free qualities and resistance to ultra violet
attack.
- C. Quartz: #28 grade colored quartz granules.
III. USES
NI Dura Epoxy Seamless Flooring is ideal for heavy commercial, institutional
and industrial areas requiring heavy wear resistance, lasting protection, and acid and
chemical resistance.
IV. APPLICATION AREAS
| Chemical Plants |
Shower areas |
Locker Rooms |
| Food Processing Plants |
Industrial Plants |
Laboratories |
| Hospitals |
Dairies |
Warehouses |
| Airports |
Auditoriums |
Cafeterias |
| Bottling |
Showrooms |
Machine Shops |
| Offices |
Toilet Areas |
Laundry Rooms |
| Correctional Facilities |
Patios |
Commercial Kitchens |
| Walk-In Coolers |
Schools |
Churches |
| Cheese Plants |
Meat Packing Plants |
Animal Hospital |
V. ADVANTAGE AND LIMITATIONS
- A. Advantages
- B. Limitations
VI. COLORS OF QUARTZ AGGREGATE
Decorative patterns are created by combining two or
more colors.
| Red |
Brown |
| Buff |
Gray |
| White |
Black |
| Light Gray |
Dark Gray |
| Snow |
VII. PHYSICAL ANALYSIS AND TECHNICAL DATA
- A. SYSTEM TESTING
| CHARACTERISTIC |
TEST TYPE |
TEST NUMBER |
RESULTS |
| Flammability |
ASTM |
D-635 |
Self extinguishing |
| Hardness Shore D |
ASTM |
D-2240 |
85 |
| Compressive Strength |
ASTM |
D-695 |
17,500 PSI |
| Tensile Strength |
ASTM |
D-638 |
4,000 PSI |
| Flexural Strength |
ASTM |
D-790 |
6,250 PSI |
| Thermal Coefficient of Expansion |
ASTM |
C-531 (IN/IN OF) |
20 by 10 ^ (-6) |
| Abrasion Resistance |
Taber Abrader CS-17 Wheel |
2,000 gm. Load, 1000 Cycles |
24.0 mg. Loss |
| Impact Resistance |
Mil |
D-3134 |
No cracking or delamination |
| Indentation |
Mil |
D-3134 |
Withstands 2,000 lbs. Per. Sq. inch for 30
minutes without indentation |
| Bond Strength to Concrete |
ACI |
403 |
350 PSI (100% concrete failure) |
| Thermal Shock |
ASTM |
C-884 |
Passes |
| Tensile Elongation |
ASTM |
D-638 |
7.5% |
| Water Absorption % |
ASTM |
D-570 |
.10 |
| Elevated Temperature |
Mil |
D-3134 |
No slip or flow |
| Toxicity |
|
|
Non-toxic, USDA Approved |
| Fungus & Bacteria |
Mil |
F-52505 |
Will not support growth of fungus or bacteria |
- B. System Chemical Resistance Guide: A ten day cure period
should be allowed before testing. A coat of NI-22 Polyurethane will enhance chemical
resistance.
| Reagent |
1 HOUR |
1 DAY |
7 DAYS |
| Nitric Acid (5%) |
Excellent |
Good |
Good |
| Acetic Acid (10%) |
Excellent |
Excellent |
Good |
| Hydrochloric Acid (10%) |
Excellent |
Excellent |
Excellent |
| Sulfuric Acid (30%) |
Excellent |
Excellent |
Good |
| Sodium Hydroxide (30%) |
Excellent |
Good |
Good |
| Detergent Solution |
Excellent |
Excellent |
Excellent |
| Salt Water |
Excellent |
Excellent |
Excellent |
| Gasoline |
Excellent |
Excellent |
Excellent |
| Mineral Spirits |
Excellent |
Excellent |
Excellent |
| Benzene |
Excellent |
Excellent |
Excellent |
| Ammonium Hydroxide (28%) |
Excellent |
Good |
Not Recommended |
| Calcium Chloride (30%) |
Excellent |
Excellent |
Excellent |
| Tri-Sodium Phosphate |
Excellent |
Excellent |
Excellent |
| Silver Nitrate (10%) |
Excellent |
Good |
Good |
| Trichloroethylene |
Excellent |
Excellent |
Excellent |
| Syrups |
Excellent |
Excellent |
Excellent |
| Phosphoric (85%) |
Excellent |
Excellen |
Excellent |
| Hydraulic Fluid |
Excellent |
Excellent |
Excellent |
| Isopropyl Alcohol |
Excellent |
Excellent |
Excellent |
| Lactic Acid (20%) |
Excellent |
Excellent |
Good |
| Methyl Isobutyl Ketone |
Excellent |
Excellent |
Excellent |
| Methylene Chloride |
Excellent |
Not Recommended |
Not Recommended |
| Motor Oil |
Excellent |
Excellent |
Excellent |
| Glycerine |
Excellent |
Excellent |
Excellent |
| Hydrogen Peroxide (6%) |
Excellent |
Good |
Not Recommended |
| Ferric Chloride |
Excellent |
Excellent |
Good |
| Mustard |
Excellent |
Good |
Good |
| Acetone |
Excellent |
Not Recommended |
Not Recommended |
- C. PRIMER/PRIMARY BASE MEMBRANE: MINIMUM PHYSICAL
PROPERTIES: of Adhere 101
| REQUIREMENTS |
METHOD |
PERFORMANCE |
| 1. Bond Test |
Compressive Shear Test
glazed side ceramic tile |
Load 1650 lbs. Shear
strength376 PSI |
| 2. Curing of Two Component
water based system |
Mix two components 1.1
ratio 75° F |
Shall be solid after 3 hrs |
| 3. Combustibility |
Water based |
Flame Spread: None |
| 4. Fading Ambering |
Fade Ometer |
No Change |
| 5.
Flexibility |
Fed Test
Stand. 141 Method 6221 1/8" Mond ret @ 23 C |
No
cracking of continuity at bend |
| 6. Exterior moisture
absorption |
Fed Spec Standard TTC001224 |
No absorption |
| 7.
Hydrostatic resistance |
Fed Spec
Standard TT-P-001411 |
75 lbs.
PSI |
| 8.
Alkalis resistance |
ASTM
D-543 |
Excellent |
| 9.
Non-Toxic |
No
Solvent |
odor
free |
| 10.
Abrasion resistance |
Taber
Abrader ASTM 1000 cycles |
Low
Wear0.1% |
| 11.
Viscosity |
Brookfield
viscometer |
14,800
CPS |
| 12.
Drying Time |
Set to
touch Dry hard |
30
minutes 1 hour |
- D. SECONDARY QUARTZ MEMBRANE BINDER: NI-21
| Pot Life (1 lb.) |
25 minutes at 70 degrees F. |
| Peak Exotherm |
147°
C |
| Shore D Hardness |
80 |
| Tensil Strength, PSI |
5760 |
| Flexural Strength PSI |
9135 |
| Elongation % |
3.9 |
| IZOD Impact, ft. lbs./in of
notch |
0.478 |
| Compressive Strength, PSI |
15,000 |
| Heat Distortion Point |
49°
C |
| Density, gms.cc |
1.16 |
| Aluminum/aluminum adhesion,
PSI |
1840 |
| Chemical resistance |
Excellent |
| UV resistance |
Good |
| Color |
water white |
| Viscosity |
100CPS |
| Amine Value |
90 |
| Specific Gravity |
.95 |
VIII. APPLICATION
Provide all components necessary to complete installation.
- A. Prepare and abrade substrate, removing all foreign
materials. (Refer to preparation section)
- Concrete substrate: Fill all cracks and voids with (2) component water based, heavy
bodied 56% epoxy (Adhere 101) and Portland cement. New concrete must be cured a minimum of
28 days, free of sealers, curing compounds, hydrostatic pressure and moisture
transmission. Old concrete must be clean, free from paint, oils, stain, or other foreign
materials that would prevent proper hydration and bonding. Refer to general preparation of
sub-surfaces.
- Wood substrate: Fill seams with (2) component 56% water based epoxy and Portland
cement (Adhere 101). Apply 3" wide fiber tape over all seams.
- Substrate Temperature: Substrate
temperature must be no lower than 50 degrees F., maintained during the installation and
curing period.
- Deteriorating or spalling areas must be filled and
repaired with Northern's Epoxy Mortar System, prior to applying NI-Dura Quartz Trowel
applied flooring system.
- B. Prime Coat
- Coverage: 100 to 120 sq. feet per gallon
- Tools: 3/8" nap roller
- Procedure
- a) Prime entire area with Adhere 101 using 3/8" nap roller
- C. Mix Quartz Aggregate
- Mixing (refer to Quartz Aggregate Product Data Sheet):
- a) After colors are selected, colors and sizes should be pre-blended dry for entire job
or area to insure uniformity and color.
- D. Mix NI-21 100% Epoxy
- Mix: (2) parts resin to (1) part curing agent.
- E. First Broadcast Coat
- Coverage: approximately 100-150 sq. ft. per gallon
- Tools: 3/8" inch nap roller, roller tray
- Procedure
- a) Apply NI-21 100% Epoxy formulation with 3/8" inch nap roller
- b) Broadcast #28 Quartz into wet NI-21 100% Epoxy making sure all wet spots are soaked
up.
- (1) Coverage of Quartz: 2 sq. ft. per lb.
- c) Allow First Broadcast Coat to dry
- F. Sweep off excess Quartz
- G. Second Broadcast Coat
- Coverage: approximately 100-150 sq. ft. per gallon
- Tools
- Procedure
- a) Apply NI-21 100% Epoxy
- b) Broadcast #28 Quartz as Second Broadcast.
- H. Sweep off excess Quartz
- I. Finish Coats
- Apply two (2) finish coats of Ni-21 100% Epoxy, allowing each coat to dry.
- Finish coats may be adjusted to meet non-skid requirements. If polyurethane finish
coat is requested over the NI-21 Epoxy, it is recommended that the surface be tack ragged:
clean with a damp cloth of Polyurethane thinner to assure proper bonding by removing
possible amine residue.
IX. PACKAGING
- NI-21 100% Epoxy is packaged in kit form: 9-gallon kit; 15-gallon kit; 55-gallon
drums.
- Adhere 101: available
in 10 gallon kits only
- Quartz aggregate: Packed and shipped in 50 lb. four-ply
bags
X. STORAGE
- A. Store material in dry area.
- B. Keep from freezing.
- C. Prevent damage to containers
- D. Do not store for long periods in direct sunlight.
- E. Protect from the environment or potential damage by other trades.
